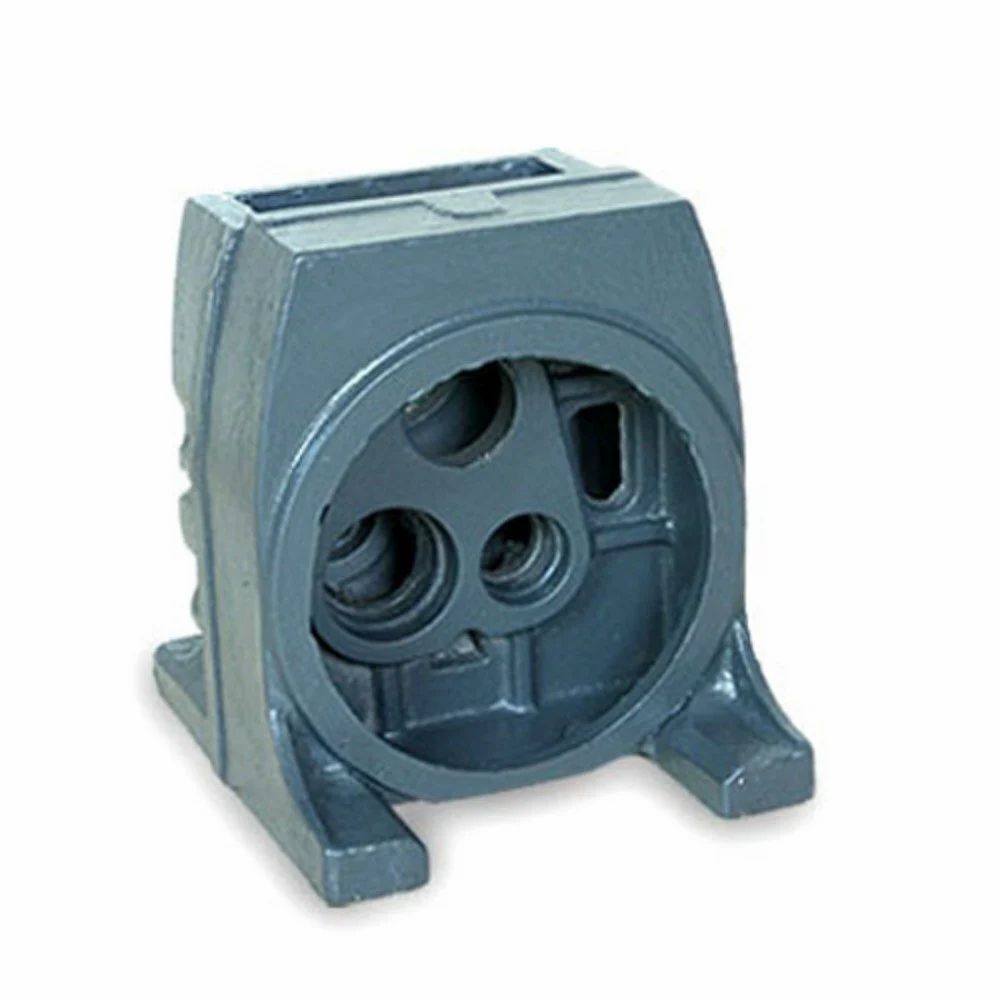

GEARBOX CASTING

GEARBOX CASTING Specification

Surface Treatment
Painted / Shot Blasted

Process
Sand Casting

Product Type
Gearbox Housing / Gearbox Casting

Material
Cast Iron / Ductile Iron

Surface
Smooth, Free from Defects

Dimension (L*W*H)
Customized as per drawing or standard sizes

Size
Custom / Standard available

Weight
10 kg to 300 kg (varies as per design)

Application
Automotive, Industrial Gearboxes, Transmission Equipment

Color
Grey or as required

Tolerance
As per IS/ISO standards

Standards Followed
IS, ASTM, DIN, BS as per application

Thickness
As per customer specification

Finishing
Deburred and Cleaned

Testing
100% Visual and Dimensional Inspection

Production Capacity
500 Pieces / Month

Heat Treatment
Optional as per customer requirement

Hardness
160-220 HB (Brinell)

Casting Method
Green Sand Mould | Resin Sand Mould

Packaging
Wooden Pallet or Box

Corrosion Resistance
Good with proper surface treatment

Machinability
Excellent, Suitable for Precision Machining

GEARBOX CASTING Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Cash on Delivery (COD)

Supply Ability
5000 Kilograms Per Month

Delivery Time
2-10 Days

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About GEARBOX CASTING

We manufacture a durable range of Cast Iron Castings Components, which is fabricated using high-quality raw material procured from reliable and trusted vendors. These products basically comprise grey iron and other groups of ferrous alloys, which solidify after coming in contact with a eutectic. Further, these can easily be certified through recognition provided by a fractured surface of the alloys. These are highly sought after in all kinds of markets, as fittings for varied kinds of machinery.

Precision Manufacturing and Quality Assurance

Gearbox castings are carefully produced using green sand or resin sand moulding, delivering superior surface finish and adherence to rigorous IS/ISO standards. Every product undergoes thorough visual and dimensional inspection to guarantee defect-free delivery. Optional heat treatments and finishing processes, such as deburring, cleaning, shot blasting, and painting, further enhance their reliability and aesthetic appeal.

Versatile Applications and Custom Options

These castings are well-suited for automotive, industrial gearboxes, and transmission equipment. Available in various sizes and thicknesses according to customer specifications, we cater to diverse project requirements. Castings weigh between 10 kg and 300 kg, with the option for custom designs, ensuring optimal fit and function for critical machinery.

FAQ's of GEARBOX CASTING:

Q: How are GEARBOX CASTING components manufactured?

A: GEARBOX CASTING components are produced using either the green sand or resin sand moulding process, followed by precision machining if needed. The process ensures a smooth, defect-free surface and maintains strict adherence to IS/ISO and other global standards.

Q: What materials and surface treatments are used for gearbox castings?

A: We use high-quality cast iron or ductile iron. To enhance corrosion resistance, castings can be shot blasted or painted, with additional surface treatments applied as requested, extending the component's lifespan in challenging environments.

Q: When is heat treatment recommended for gearbox castings?

A: Heat treatment is an optional step, offered as per customer requirements to improve mechanical properties such as toughness and hardness, based on the intended application of the casting.

Q: Where can these gearbox castings be utilized?

A: These castings are commonly used in automotive gearboxes, transmission equipment, and a variety of industrial machinery requiring precision and durability.

Q: What inspection and quality assurance measures are in place for GEARBOX CASTING?

A: Each casting undergoes 100% visual and dimensional inspection to ensure compliance with customer drawings and international standards. This guarantees defect-free and dimensionally accurate parts.

Q: What are the packaging and delivery options for gearbox castings?

A: We package all gearbox castings securely in wooden pallets or boxes, ensuring safe transportation and delivery to both domestic and international destinations.
